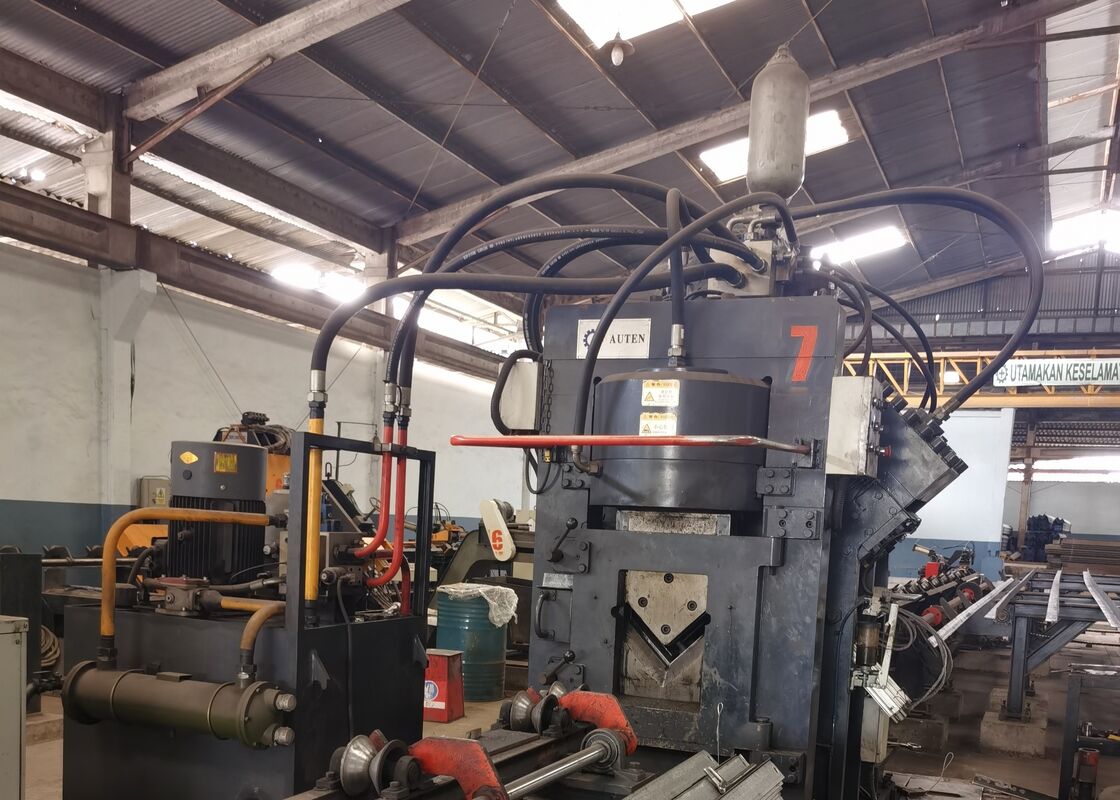

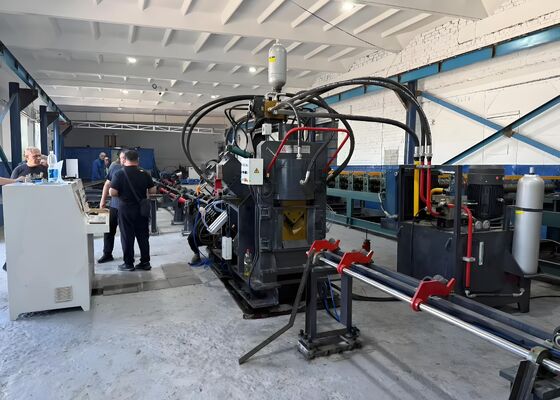

Steel Structure Fabrication Angle Steel Punching Marking Cutting Machine Construction Processing
Product Introduction:
The machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry, steel structure and buildings.
Product parameters:
| Model |
JNC1010 |
| Angle size (mm) |
40х40х3~100х100х10 |
| Max. Punching (Dia. х Thi.) (mm) |
Φ26х10 |
| Punching force (kN) |
630 |
| Marking force (kN) |
630 |
| Cutting force (kN) |
1000 |
| Max. length of blank (m) |
12 |
| Max. length of finished (m) |
8 |
| Punches per side |
2 |
| Group of marking letters |
4 |
| Number of letters per group |
12 |
| Character size(mm) |
14x10x19 |
| CNC axes |
3 |
| Cutting mode |
Single Blade |
| Cooling method |
Water cooling/Air cooling/Oil chiller |
| Max. feeding speed (m/min) |
80 |
| Programming mode |
Lofting software or instruction programming |
| Overall dimension (m) |
About 25x6.5x2.5 |
| The above parameters can be adjusted and changed according to customer's specific requirements. |
Product Features:
1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2. There are two or three sets punch and die on each side which can install three kinds of punches with different diameters, can process all holes once time.
3. CNC feeding trolly is drive by AC servo motor .The photoelectric encorder feeds back information.Closed loop controlto ensure high positioning precision.
4. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming, can manual programming and also can use the program generated by lofting software.
5. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.
6. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.
7. Marking unit adopts closed frame with good rigidity. Four groups of character boxes are fixed on the marking unit which can be selected by program.
8. With avoided shearing functions, so as to process fixed-length angles.
9. The control system consists of a host computer ,CNC system,servo motor,PLC and detection switch etc. .Only to input the drawing workpeice, the processing program is automatically generated.
10. Hydraulic system mainly is use to compele punching cutting marking press material and replace the character boxes.
These samples, representing standard specifications and typical processing scenarios within the angle steel tower industry, allow users to directly assess the quality, precision, and workmanship of the equipment. They act as a concrete reference point for evaluating the equipment’s performance and its compliance with specific production standards, thereby supporting well-informed, data-driven decisions for prospective applications.
In the construction of ultra-high voltage (UHV) transmission lines—where towers must endure extreme weather conditions and substantial loads—this equipment plays a vital role in processing the angle steel components that constitute the core structure of the towers. It consistently performs drilling and stamping operations on the angle steel utilized for tower bodies, cross-arms, and other critical structural elements, guaranteeing accurate dimensions and reliable connections that uphold the overall stability of the towers.
