Product Introduction

In steel structure fabrication facilities, this plate drilling machine performs precise drilling and milling operations on structural plates and connecting elements, providing a reliable foundation for the secure assembly of steel frameworks. In the wind power sector, it offers high-precision machining for wind turbine towers and flanges—critical processes that ensure these components can withstand challenging environmental conditions, such as strong winds and temperature variations. For bridge construction, the machine processes bridge girders and supports, ensuring the formation of stable and durable connections capable of enduring dynamic loads throughout the bridge's extended service life.

Specifications:

Product Features

1. Transmission System

The high-precision guide rails and sliders, sourced from Taiwan, are meticulously designed to ensure smooth operation while significantly improving the machine's load-bearing capacity. The X-axis is equipped with two rolling linear guides, and the Z-axis features four, both of which serve as the primary guiding and load-bearing components for lateral and longitudinal movements. This configuration fully meets the technical requirements for high-speed drilling applications. For power transmission, both the X-axis and Z-axis are driven by AC servo motors, which operate precision ball screws to convert rotational motion into highly accurate linear displacement.

The Y-axis is equipped with two heavy-duty rolling linear guides, each featuring two square rail sliders, together forming the Y-axis sliding mechanism. This design not only satisfies the high rigidity and strength requirements of the gantry frame but also delivers several technical advantages, including a low friction coefficient, high-speed movement, excellent vibration damping, and a prolonged service life. For power transmission, the Y-axis employs synchronous drive technology with servo motors, which drive the ball screws in coordination, ensuring precise reciprocating motion of the Y-axis worktable for accurate CNC machining performance.

2. Automatic Lubrication System and Protective Mechanisms

The machine is fitted with a Taiwan-made volumetric partial-pressure automatic lubrication system, which provides comprehensive lubrication to moving parts such as guide rails, lead screws, and racks, significantly extending the machine's operational lifespan. The X-axis and Y-axis are protected by dustproof covers, while waterproof splash guards are installed around the worktable, offering enhanced protection during operation.

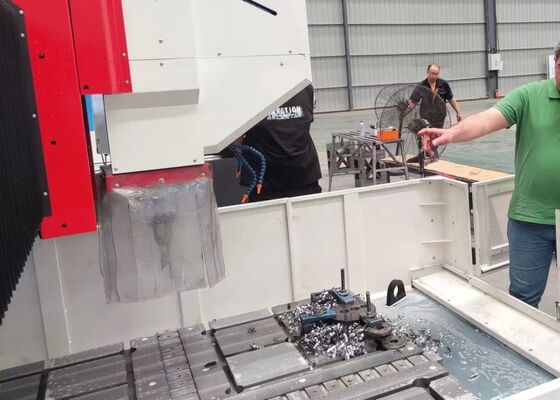

3. Central Coolant Delivery System

This machine is equipped with a standard central coolant delivery system. The internal coolant circulation effectively prevents the accumulation of metal chips on the tool during machining, reducing tool wear, prolonging tool life, and enhancing the surface finish of the workpieces. The high-pressure coolant outlet at the tool tip provides reliable protection for both the workpiece surface and the high-speed rotary joint, preventing blockages caused by debris and improving overall workpiece quality and operational efficiency.

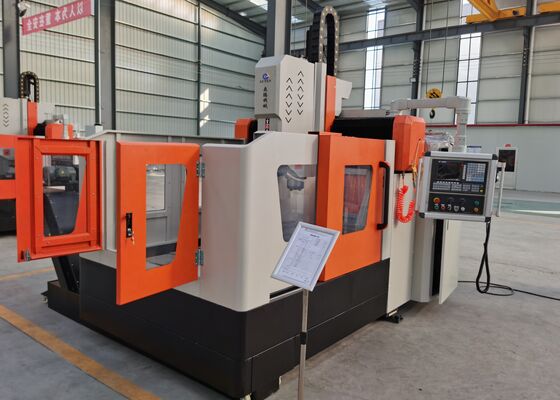

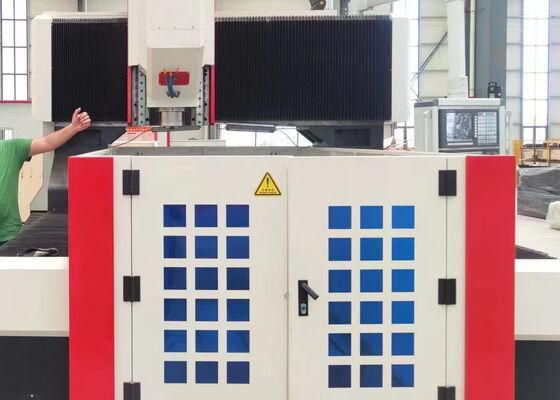

This sophisticated CNC gantry-type industrial machine, specifically designed for plate and sheet metal drilling and marking operations, is meticulously engineered for high-precision machining of plate-like components and structural parts. Optimized for processing workpieces such as flanges, discs, rings, and flat plates, it guarantees that the thickness of these components strictly adheres to the machine's defined effective machining parameters.

In steel structure manufacturing facilities, this machinery performs highly precise drilling and milling operations on structural plates and connecting components, providing a solid foundation for the secure assembly of steel frameworks. Within the wind energy industry, it delivers precision machining solutions for wind turbine towers and flanges—vital processes that ensure these components are capable of withstanding challenging environmental conditions, such as strong winds and temperature fluctuations. In bridge construction, the equipment processes bridge girders and support brackets, facilitating the creation of strong, durable connections designed to withstand dynamic loads throughout the bridge's extended service life.
