Boiler Manufacturing Industry CNC Plate Milling Machine Heat Exchanger Manufacturing
Product Introduction:

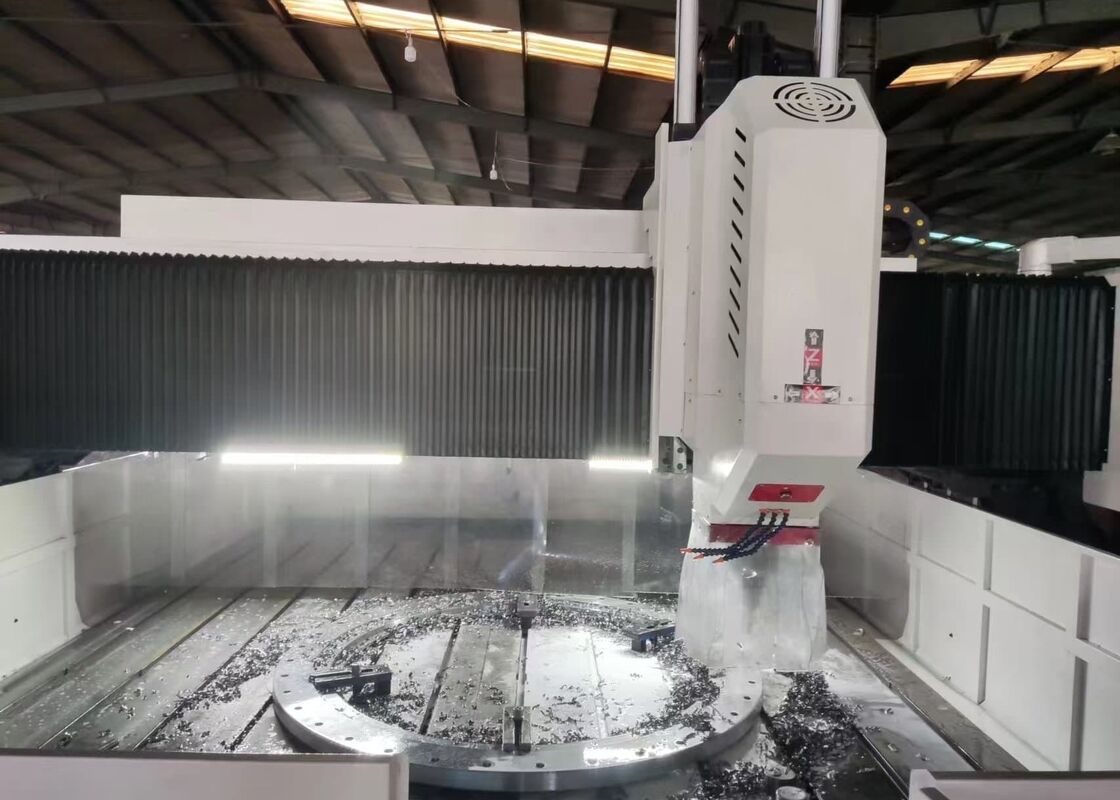

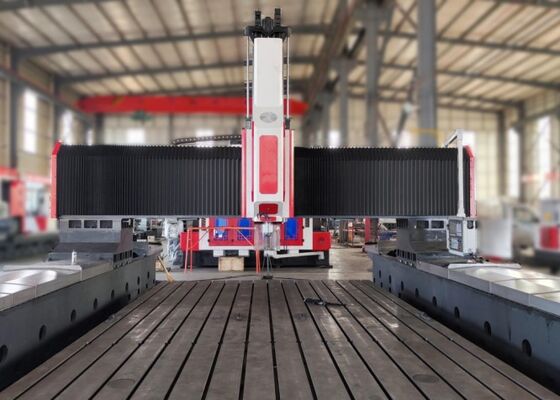

This machine is a gantry mobile CNC high-speed drilling and milling machine. It is mainly used for drilling, tapping and milling of workpieces such as steel plates, flanges, heat exchangers, tube sheets, and slewing supports. Carbide drills can be used for high-speed drilling with internal cooling. This machine is equipped with KND or Siemens CNC system bus control, convenient operation, can achieve automation, high -precision, multi -variety, small and medium -sized production.
Product configuration:
| Model |
PHD4080 |
| Workpiece size |
LxW (mm) |
4000x8000 |
| T-slot width of Workbench (mm) |
28 |
| Drilling power head |
Qty. |
1 or 2 |
| Spindle taper |
BT50 |
| Max. drilling diameter (mm) |
Φ90 |
| Max. thickness (mm) |
≤300 |
| Tapping diameter |
M3-M36 |
| Spindle speed (r/min) |
30~3000 |
| Servo spindle motor power (kW) |
22/30/37 |
| Lateral movement of power head (X axis) |
Max. horizontal stroke (mm) |
4000 |
| Lateral movement speed (r/min) |
0~6 |
| Servo motor power for lateral movement (kW) |
3.6 |
| Gantry longitudinal movement (Y axis) |
Max. feed stroke (mm) |
8000 |
| Feed moving speed (m/min) |
0~6 |
| Feed servo motor power (kW) |
3.6/5.5 |
| Vertical ram feed motion (Z axis) |
Max. stroke (mm) |
1400 |
| Moving speed (m/min) |
0~4 |
| Servo motor power (kW) |
3.6 |
| Three-axis positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.015/1000 |
| Three-axis repeat positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.01/1000 |
| Electrical system |
CNC system |
SIEMENS/ FAGOR/ KND/ GSK |
| Tool changer |
Disc type (Optional) |
24 tool positions |
| Overall size |
LxWxH (m) |
13x6.9x6.2 |
Product features

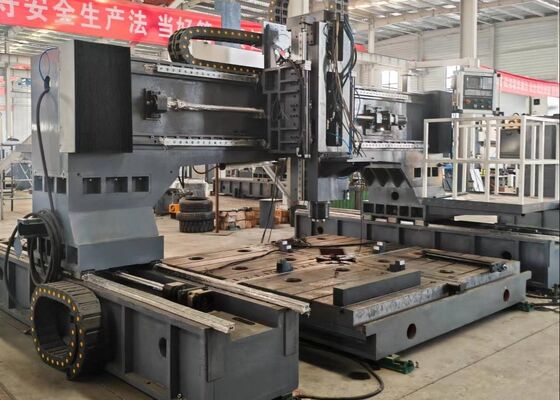

1. The machine is mainly composed of bed, worktable, moving gantry, vertical ram type power head, hydraulic system, pneumatic system, cooling system, centralized lubrication system, electrical control system and automatic chip removal system.
2. For this series machine, wortbale and gantry they are separately, gantry moving on two bases, this kind struture greatly improve the processing stability and precision, high load-bearing capacity.
3. High quality grey iron CASTING WORKTABLE.
The machine bed and worktable are made of high-quality gray iron (HT300), and the stress is removed by two tempering heat treatments. In order to eliminate the resonance generated in the drilling process and prolong the service life of the alloy drill, the independent form of the bed and the worktable is adopted.
1. Automatic chip removal and circulation cooling system reduce the nonproductive time and labor intensity. The operator only need to load and unload work piece and change the drills.
2. Machine use Taiwan BT50 spindle, internal cooling type, high accuracy spindle. It can use carbide drill. Machine also adopts pneumatic tools cylinder, to make tools change more easier. The big power main spindle motor is driven by servo synchronization belt. This is can bear big scope of rotation speed.
3. This CNC drilling machine is designed according to the workpiece features and precision requirements; it has compact form and is flexible, it meets the processing requirements better. No matter the holes are arranged as circle or straight line, it can finish the work quickly and accurately. Therefore, this machine is cost-effective choice.
The CNC gantry plate cutting machine is a durable industrial solution, expertly designed for the precise processing of plate-like components and structural elements. This equipment is specifically optimized for handling workpieces such as flanges, discs, rings, and flat plates, with the condition that the material thickness falls within the machine's defined effective machining range.
In steel structure manufacturing facilities, this plate drilling machine performs precise drilling and milling operations on structural plates and connecting components, providing a reliable foundation for the robust assembly of steel frameworks. In the wind energy industry, it offers high-precision machining for wind turbine towers and flanges—critical processes that ensure these components can endure harsh environmental conditions (such as high winds and temperature variations). For bridge construction projects, the equipment processes bridge girders and supports, ensuring the creation of stable and durable connections capable of withstanding dynamic loads over the bridge's extended service life.
